TITAN Multi Axle Hydraulic Modular Trailer For Sale

FOB Reference Price:Get Latest Price
US $50,000-130,000 / Units | 1 Unit/Units (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Use:
Truck Trailer
Type:
Semi-Trailer
Material:
Steel
Certification:
SGS, BV, CE, CCC
Size:
every modular combine freely
OEM No.:
Modular Trailer
Max Payload:
500 ton
Place of Origin:
Shandong, China (Mainland)
Brand Name:
TITAN
Model Number:
TITAN Modular Trailer
Product name:
Modular Trailer
Function:
Carrying power plants, oil, gas industries, road transport, shipyard
AXle:
Hydraulic Multi Axle
Condition:
New
Loading ramp:
manual
King pin:
2.5"or3.5" JOST
Keywords:
Modular Trailer
Suspension:
Heavy mechanical suspension
Components:
gooseneck, drawbar, spacer, dropdeck, ect avaliable
Brand:
TITAN
SupplyAbility
SupplyAbility:
200 Set/Sets per Month Modular Trailer
Packaging & Delivery
Packaging Details
Nude packing. Bulk cargo or RORO shipping for Modular Trailer, or as Customer's requirements.
Shandong Titan Vehicle Co.,Ltd manufacture the most reliable products in most reasonable price. we want something improved, TITAN offer better capacity , competitive price, after-sale service, and spares parts supply chain. TITAN always looking for the long term, high avaiablity, cost-effective, TITAN always try to provide a solution not just a product.
Contact us now, you will get $ 500 spare parts for free.
Port
Tianjin, Qingdao Port

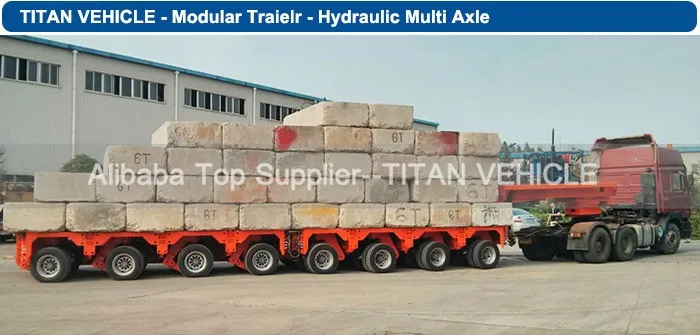

TITAN Multi Axle Hydraulic Modular Trailer For Sale

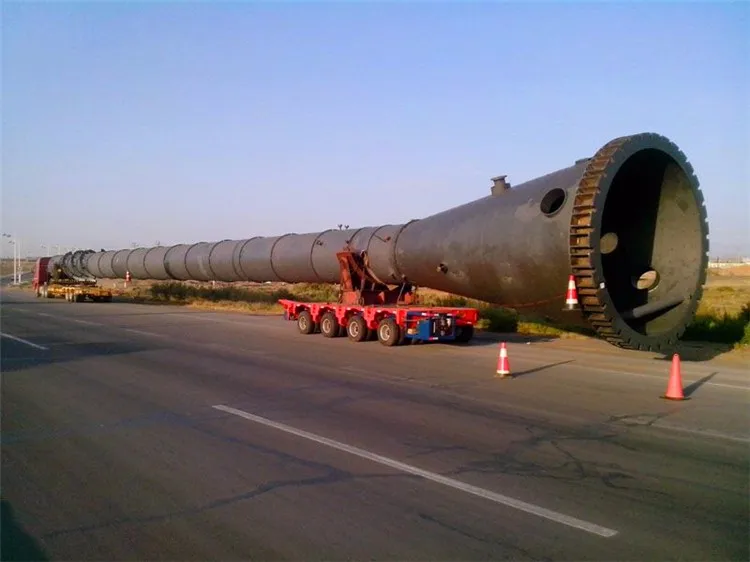

Want to load out in huge stuff over 200 tons, you probably need modular trailer

Hydraulic Multi Axle Trailer8d.jpg





ADVANTAGES

- Extremely robust and durable construction, extremely high load bering capacity.

- Longitudinal and lateral combination module.

- All wheels steerable automatically or manully.

- Hydraulic axle suspension adpt uneven road condition.

- Platform height is adjustable.

- Lifting cylinder make trailer automaticall responts tough road conditions.
- Safety valve in hydraulic circuit.
- Brake air tank ensure immediate brake.

- Pendular axle and suspension easy for maintenance.

- Pneumatic and hydraulic quick coupling.
- Modules connectiung pin adopts hydraulic cylinder make longitudinal coupling fast
- Dual-circuit hydraulic system gurantee safe work condition
- End by end combination and side by side combination of each module are available
- Small turning radius,  55° steering angle with hydraulic gooseneck .

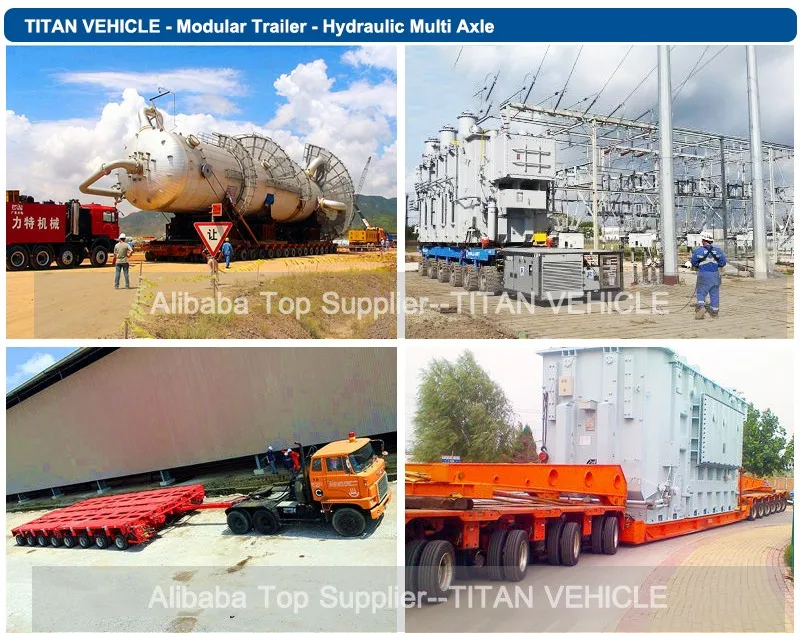

- Transport equipment such as the in power plants, oil and gas industries, windmill in power and offershore  industry






SPECIFICATION
- Frame
The box-shaped centre beam with its stable cross beams offers ahigh degree of frame stability and thereboy optimal loading options, the peneumatic and hydraulic oil tanks as well as the steering system are integrated into the chassis frames and are thereby protected from damage, A reinforced loading platfrom enable extremly concentrated load, The optimised lashing coupling ensures trouble free combination of the longitudinal combination
- Axle compensation
Hydraulic axle compensation for the individual swing axles can be connected to differing support circles depending on the load, in order to ensure uniform axle loads, This guarantee optimal longitudinal and lateral compensation in uneven terrain and also regulates extrem crossfalls
- Steering
A hydro-mechanical all-wheel mechanically controlled 2 -circuit steering system ensures that full functionality is maintained, even in the event of failure in one of the steering circuits. The steering angle is up to  +/- 55° and the steerin gcan be quickly adapted to the corresponding vehicle combination via the track rods which are accessible from above. An electronic steering synchronisation system is additionally available for vehicles in a free combination.
- Accessories and Combination Options
TITAN VEHICEL offer optional extensive range of accessories to enhance your professional transprot solution



Dear Friends, Should you have any questions or requirements , Why not chat with me now? we will provide you best solution to support you!











TITAN SERVICE
 A. Two-years warranty & lifetime maintenance, free parts delivered by air within one week under your  request
 B. Shandong Titan Vehicle Co.,Ltd offer third party inspection service, such as BV, SGS.etc
 C. OEM, ODM acceped, customeized semi trialers meeting with your demand.
 D. Technical support, if needed, TITAN can let our engineers to help you in person.
 E. Speedy delivery, the delivery time is within 15 workdays after we received your prepayment.
